Submersible Pumps

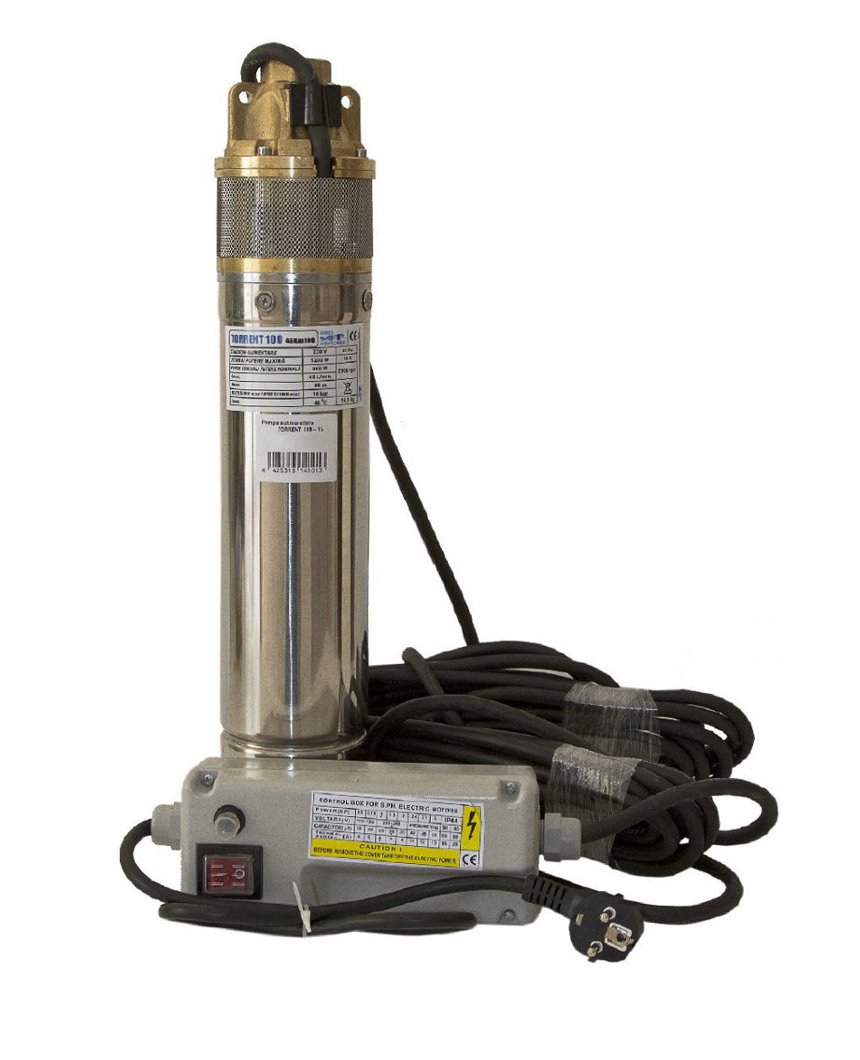

4PN 4" submersible pumps
A 4" submersible peripheral pump to extract clear water from a shallow borehole (up to 10m depth), tank or well.
Fitted with 0.75kW oil-filled motor and mechanical seal.
With 10m waterproof cable and separate starter box. (Additional cable can be supplied for extra price if needed.)
This pump can be used with a float switch to prevent it running dry when used within well or tank application - please see control gear section
Product specification (PDF)
| Motor | Max. head (m) | Max. flow rate (l/min) | Carriage band |
Price | Cart | |
|---|---|---|---|---|---|---|
| 4PN20 | 0.75kW | 61 | 43 | B | £332.10 | |
| 4PN2011 | 1.1kW | 99 | 43 | B | £341.10 |
Prices exclude VAT - view cart / checkout
Show or hide full hydraulic data table -
| Flowrate (l/min) |
0 | 8.3 | 16.6 | 25 | 33.3 | 43 | |
|---|---|---|---|---|---|---|---|
| 4PN20 | Head(m) | 61 | 50 | 38 | 27 | 15 | 4 |
| 4PN2011 | Head(m) | 99 | 79 | 59 | 39 | 19 | 4 |
DAB Diver Submersible Pumps
These are 6" submersible multi-stage pumps, ideal for rainwater systems, operating sprinklers, pumping water from tanks, cisterns, ponds and wells and other applications that require high pressure.
Includes start/stop float switch.
Product specification (PDF)
| Motor | Max. head (m) | Max. flow rate (l/min) | Carriage band |
Price | Cart | |
|---|---|---|---|---|---|---|
| DABDIVER6700A | 0.65kW | 36 | 90 | B | £315.00 | OUT OF STOCK |
| DABDIVER6850A | 0.75kW | 46 | 90 | B | £414.90 |
Prices exclude VAT - view cart / checkout
Show or hide full hydraulic data table -
| Flowrate (l/min) |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DABDIVER6700A | Head(m) | 36 | 34 | 32 | 30 | 28 | 24 | 21 | 17 | 12 | 7 |
| DABDIVER6850A | Head(m) | 46 | 43 | 40 | 37 | 33 | 29 | 25 | 19 | 13 | 8 |

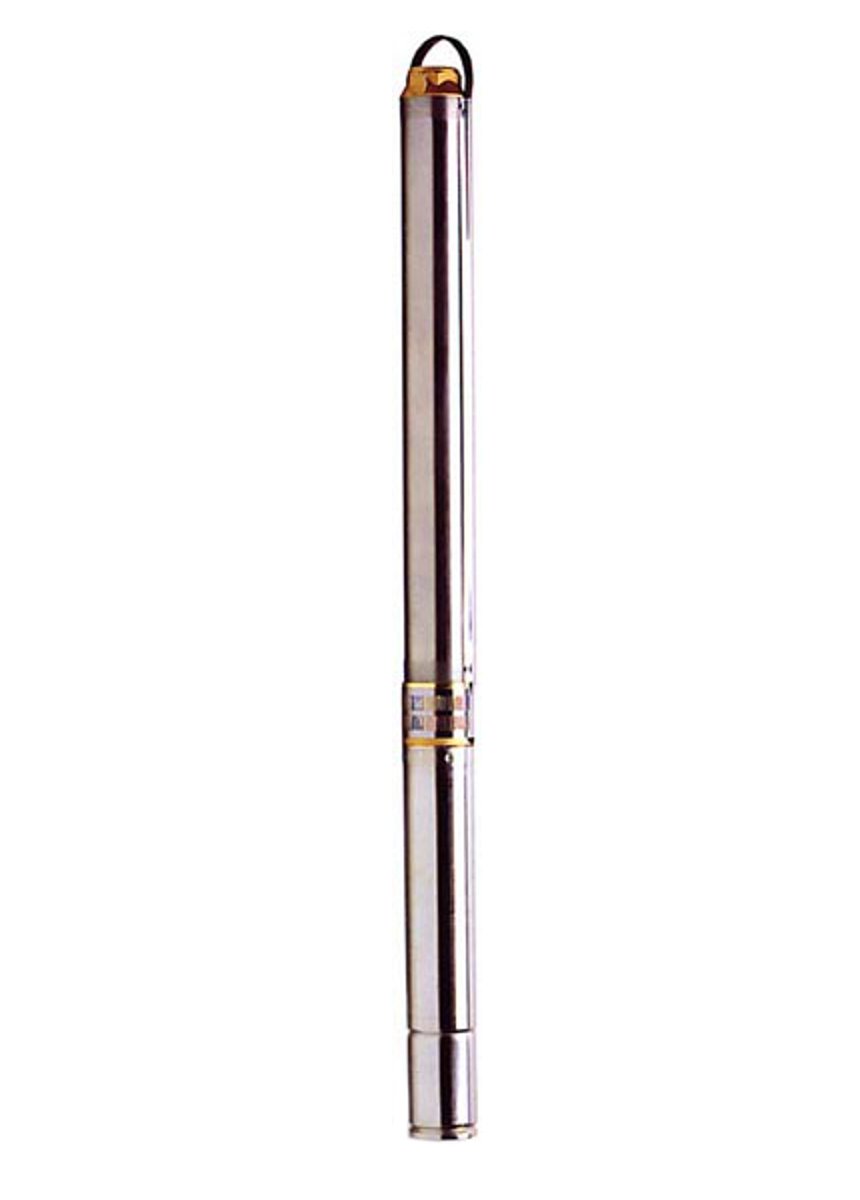

PS 3" submersible borehole pumps
A range of 3" multistage centrifugal pumps suitable for abstraction of water from boreholes. They are particularly suitable for smaller diameter boreholes or where the borehole liner is damaged.
Fitted with 3" Sumoto single phase motors which have a separate control box.
We also offer an alternative control box which includes level probes to protect the pump from running dry. Two lengths of single core water proof cable are required, one for each of the two probes (see here).
Product specification (PDF)
| Motor | Max. head (m) | Max. flow rate (l/min) | Carriage band |
Price | Cart | |
|---|---|---|---|---|---|---|
| PS15 | 0.37kW | 46 | 45 | B | £726.30 | |
| PS23 | 0.55kW | 70 | 45 | B | £819.90 | |
| PS30 | 0.75kW | 92 | 45 | B | £894.60 | |
| PS45 | 1.1kW | 128 | 45 | B | £1209.00 |
Prices exclude VAT - view cart / checkout
Show or hide full hydraulic data table -
| Flowrate (l/min) |
5 | 10 | 15 | 20 | 30 | 40 | 45 | |
|---|---|---|---|---|---|---|---|---|
| PS15 | Head(m) | 46 | 42 | 39 | 36 | 28 | 15 | 7 |
| PS23 | Head(m) | 70 | 66 | 61 | 55 | 43 | 24 | 13 |
| PS30 | Head(m) | 92 | 86 | 80 | 73 | 57 | 33 | 17 |
| PS45 | Head(m) | 128 | 119 | 112 | 103 | 75 | 47 | 28 |

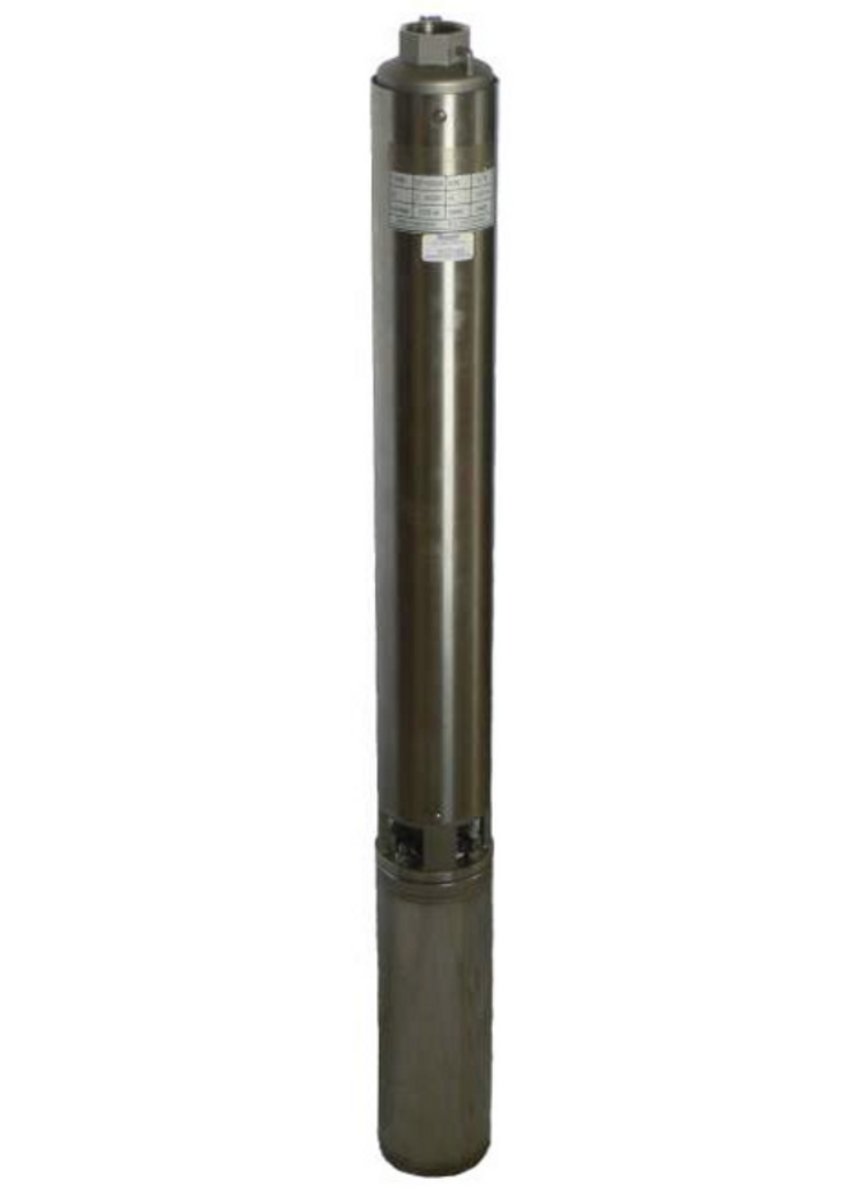

ST 4" submersible borehole pumps
A range 4" multistage centrifugal pumps, suitable for abstraction of water from boreholes, with floating impellers to reduce starting torque and increase sand resistance.
Fitted with water lubricated encapsulated single phase motors.
We also offer an alternative control box which includes level probes to protect the pump from running dry. Two lengths of single core water proof cable are required, one for each of the two probes (see here).
Product specification (PDF)
| Motor | Max. head (m) | Max. flow rate (l/min) | Carriage band |
Price | Cart | |
|---|---|---|---|---|---|---|
| ST05-13 | 0.37kW | 86 | 25 | B | £722.00 | |
| ST05-19 | 0.55kW | 126 | 25 | B | £796.00 | |
| ST05-26 | 0.75kW | 173 | 25 | B | £917.00 | |
| ST10-07 | 0.37kW | 46 | 50 | B | £689.00 | |
| ST10-10 | 0.55kW | 69 | 50 | B | £767.00 | |
| ST10-14 | 0.75kW | 92 | 50 | B | £831.00 | |
| ST10-20 | 1.1kW | 139 | 50 | B | £914.00 | |
| ST10-28 | 1.5kW | 189 | 50 | B | £1112.00 | |
| ST13-11 | 0.75kW | 72 | 70 | B | £762.00 | |
| ST13-16 | 1.1kW | 106 | 70 | B | £853.00 | |
| ST13-21 | 1.5kW | 142 | 70 | B | £969.00 | |
| ST13-32 | 2.2kW | 208 | 70 | B | £1239.00 |
Prices exclude VAT - view cart / checkout
Show or hide full hydraulic data table -
| Flowrate (l/min) |
0 | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 70 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST05-13 | Head(m) | 86 | 78 | 70 | 56 | 42 | 23 | |||||
| ST05-19 | Head(m) | 126 | 118 | 105 | 86 | 60 | 30 | |||||
| ST05-26 | Head(m) | 173 | 160 | 141 | 117 | 81 | 39 | |||||
| ST10-07 | Head(m) | 46 | 43 | 42 | 39 | 36 | 29 | 22 | ||||
| ST10-10 | Head(m) | 69 | 65 | 63 | 60 | 55 | 44 | 29 | ||||
| ST10-14 | Head(m) | 92 | 86 | 83 | 79 | 74 | 60 | 42 | ||||
| ST10-20 | Head(m) | 139 | 131 | 127 | 120 | 111 | 90 | 60 | ||||
| ST10-28 | Head(m) | 189 | 178 | 172 | 164 | 153 | 126 | 90 | ||||
| ST13-11 | Head(m) | 72 | 68 | 66 | 64 | 58 | 49 | 38 | 26 | |||
| ST13-16 | Head(m) | 106 | 101 | 98 | 95 | 83 | 70 | 54 | 33 | |||
| ST13-21 | Head(m) | 142 | 135 | 132 | 127 | 115 | 100 | 79 | 49 | |||
| ST13-32 | Head(m) | 208 | 200 | 194 | 187 | 165 | 138 | 104 | 62 |
| Motor | Max. head (m) | Max. flow rate (l/min) | Carriage band |
Price | Cart | |
|---|---|---|---|---|---|---|
| ST18-18 | 1.5kW | 120 | 100 | B | £882.90 | |
| ST18-27 | 2.2kW | 172 | 100 | B | £1235.00 | |
| ST25-08 | 0.75kW | 50 | 110 | B | £774.00 | |
| ST25-12 | 1.1kW | 77 | 110 | B | £873.00 | |
| ST25-16 | 1.5kW | 101 | 110 | B | £997.00 | |
| ST25-24 | 2.2kW | 150 | 110 | B | £1259.00 | |
| ST25-32-3~ | 3.0kW | 199 | 110 | B | £1584.00 |
Prices exclude VAT - view cart / checkout
Show or hide full hydraulic data table -
| Flowrate (l/min) |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST18-18 | Head (m) |
120 | 118 | 115 | 111 | 105 | 98 | 88 | 75 | 60 | 42 | 25 | |
| ST18-27 | Head (m) |
172 | 170 | 166 | 161 | 152 | 141 | 127 | 109 | 87 | 61 | 35 | |
| ST25-08 | Head (m) |
50 | 50 | 49 | 48 | 46 | 43 | 39 | 35 | 30 | 24 | 18 | 11 |
| ST25-12 | Head (m) |
77 | 76 | 75 | 73 | 71 | 68 | 63 | 57 | 49 | 41 | 31 | 20 |
| ST25-16 | Head (m) |
101 | 101 | 100 | 99 | 96 | 92 | 86 | 77 | 68 | 57 | 46 | 32 |
| ST25-24 | Head (m) |
150 | 149 | 148 | 145 | 139 | 132 | 122 | 111 | 97 | 80 | 62 | 43 |
| ST25-32-3~ | Head (m) |
199 | 197 | 195 | 190 | 185 | 175 | 162 | 146 | 127 | 105 | 80 | 59 |
| Motor | Max. head (m) | Max. flow rate (l/min) | Carriage band |
Price | Cart | |
|---|---|---|---|---|---|---|
| ST35-07 | 0.75kW | 41 | 150 | B | £750.00 | |
| ST35-10 | 1.1kW | 60 | 150 | B | £849.00 | |
| ST35-14 | 1.5kW | 90 | 150 | B | £981.00 | |
| ST35-20 | 2.2kW | 124 | 150 | B | £1218.00 | |
| ST35-27-3~ | 3.0kW | 170 | 150 | B | £1551.00 | |
| ST35-36-3~ | 4.0kW | 220 | 150 | B | £1847.00 |
Prices exclude VAT - view cart / checkout
Show or hide full hydraulic data table -
| Flowrate (l/min) |
0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 150 | |
|---|---|---|---|---|---|---|---|---|---|---|
| ST35-07 | Head(m) | 41 | 38 | 34 | 30 | 25 | 19 | 11 | 8 | |
| ST35-10 | Head(m) | 60 | 55 | 51 | 45 | 38 | 29 | 18 | 11 | |
| ST35-14 | Head(m) | 90 | 80 | 74 | 68 | 59 | 46 | 28 | 20 | |
| ST35-20 | Head(m) | 124 | 110 | 102 | 92 | 80 | 62 | 40 | 30 | |
| ST35-27-3~ | Head(m) | 170 | 150 | 139 | 123 | 107 | 84 | 55 | 40 | |
| ST35-36-3~ | Head(m) | 220 | 197 | 181 | 164 | 143 | 112 | 72 | 48 |

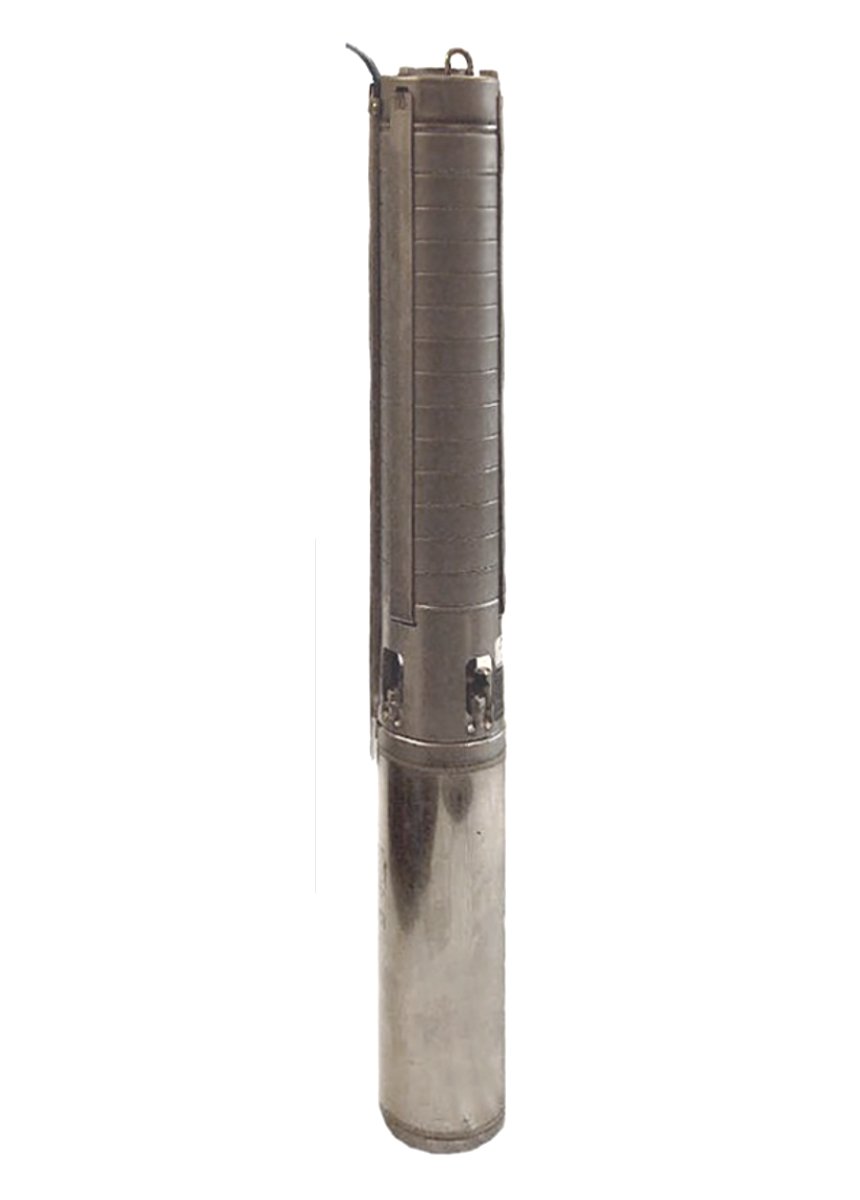

SP 4" submersible borehole pumps
A range 4" multistage centrifugal pumps with stainless steel closed impellers, suitable for abstraction of water from boreholes.
Fitted with water lubricated encapsulated single phase motors.
We also offer an alternative control box which includes level probes to protect the pump from running dry. Two lengths of single core water proof cable are required, one for each of the two probes (see here).
Product specification (PDF)
| Motor | Max. head (m) | Max. flow rate (l/min) | Carriage band |
Price | Cart | |
|---|---|---|---|---|---|---|
| SP5-14 | 0.37kW | 82 | 25 | B | £966.00 | |
| SP5-21 | 0.55kW | 121 | 25 | B | £1179.00 | |
| SP5-28 | 0.75kW | 162 | 25 | B | £1382.00 | |
| SP10-09 | 0.37kW | 53 | 40 | B | £821.00 | |
| SP10-13 | 0.55kW | 77 | 40 | B | £952.00 | |
| SP10-18 | 0.75kW | 106 | 40 | B | £1091.00 | |
| SP10-23 | 1.1kW | 136 | 40 | B | £1272.00 | |
| SP10-28 | 1.5kW | 166 | 40 | B | £1456.00 | |
| SP18-12 | 0.75kW | 78 | 70 | B | £983.00 | |
| SP18-18 | 1.1kW | 117 | 70 | B | £1174.00 | |
| SP18-25 | 1.5kW | 162 | 70 | B | £1412.00 | |
| SP18-33 | 2.2kW | 212 | 70 | B | £1839.00 |
Prices exclude VAT - view cart / checkout
Show or hide full hydraulic data table -
| Flowrate (l/min) |
0 | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 70 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SP5-14 | Head(m) | 82 | 76 | 70 | 56 | 41 | 21 | |||||
| SP5-21 | Head(m) | 121 | 112 | 101 | 81 | 58 | 36 | |||||
| SP5-28 | Head(m) | 162 | 153 | 138 | 111 | 73 | 42 | |||||
| SP10-09 | Head(m) | 53 | 50 | 47 | 42 | 38 | 26 | |||||
| SP10-13 | Head(m) | 77 | 71 | 68 | 61 | 56 | 38 | |||||
| SP10-18 | Head(m) | 106 | 98 | 92 | 84 | 77 | 51 | |||||
| SP10-23 | Head(m) | 136 | 124 | 118 | 108 | 98 | 67 | |||||
| SP10-28 | Head(m) | 166 | 155 | 146 | 134 | 120 | 82 | |||||
| SP18-12 | Head(m) | 78 | 67 | 65 | 59 | 52 | 42 | 28 | ||||
| SP18-18 | Head(m) | 117 | 101 | 98 | 89 | 78 | 64 | 42 | ||||
| SP18-25 | Head(m) | 162 | 140 | 134 | 121 | 106 | 86 | 58 | ||||
| SP18-33 | Head(m) | 212 | 180 | 173 | 160 | 138 | 109 | 73 |

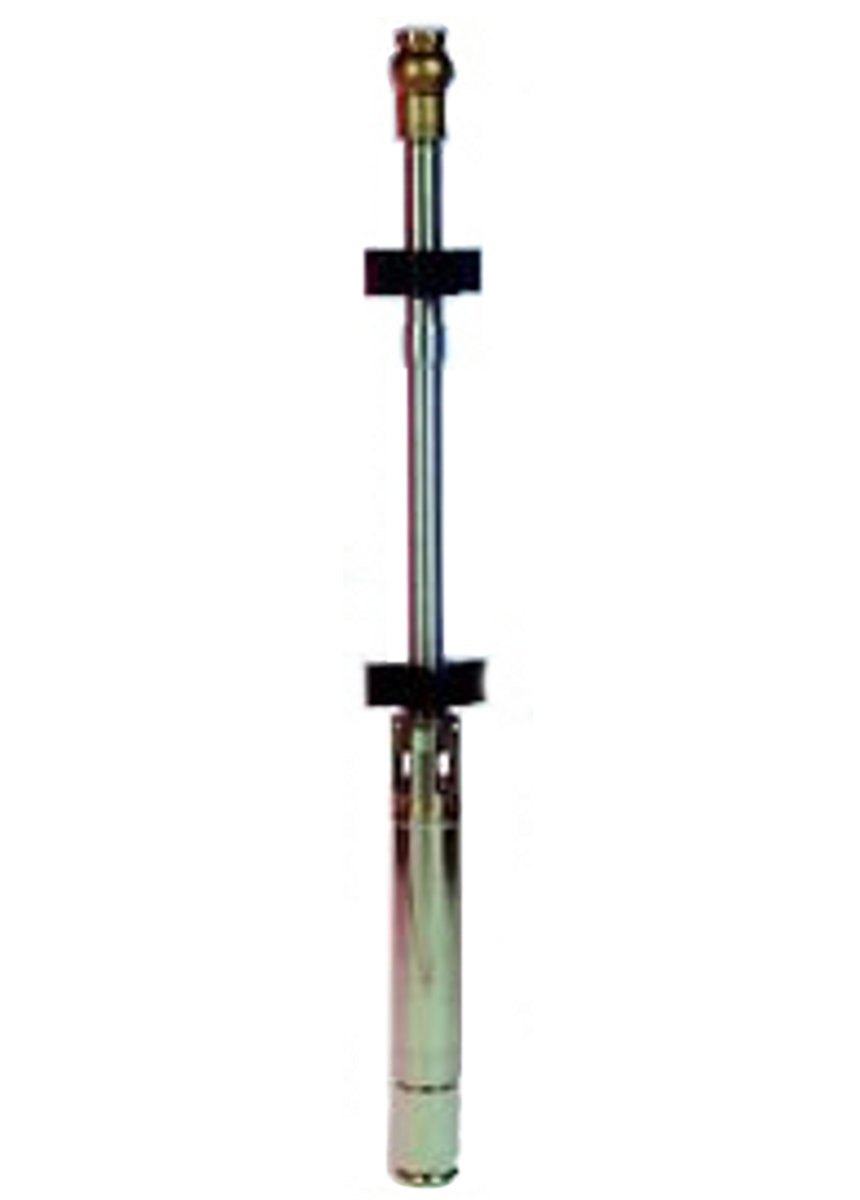

Mono Subrotor
The Mono subrotor 4" borehole pump is an alternative to multistage centrifugal borehole pumps.
It is particularly suitable for borehole water containing silt, iron oxides and ochre as the rotor/stator is self cleaning to ensure no algae or oxide deposits.
It can easily be fitted to replace your standard multi-impeller borehole pump.
These are positive displacement pumps and are not suitable for throttling on the suction or discharge.
Product specification (PDF)
| Motor | Max. head (m) | Max. flow rate (l/min) | Carriage band |
Price | Cart | Price | Cart | |
|---|---|---|---|---|---|---|---|---|
| MONO-SM022 | 0.75kW | 150 | 21 | B | £1367.00 | £125.00 | ||
| MONO-SM041 | 0.75kW | 75 | 40 | B | £1322.00 | £125.00 | ||
| MONO-SM042 | 1.5kW | 150 | 40 | B | £1490.00 | £129.00 | ||
| MONO-SM061 | 1.1kW | 75 | 65 | B | £1414.00 | £127.00 | ||
| MONO-SM062 | 2.2kW | 150 | 65 | B | £1707.00 | £166.00 | ||
| MONO-SM101 | 1.5kW | 75 | 96 | B | £1950.00 | £129.00 | ||
| MONO-SM151 | 2.2kW | 75 | 120 | B | £2334.00 | £166.00 |
Prices exclude VAT - view cart / checkout
Show or hide full hydraulic data table -
| Head(m) | 0 | 75 | 120 | 150 | |
|---|---|---|---|---|---|
| MONO-SM022 | Flow(l/m) | 21 | 18 | 15 | 14 |
| MONO-SM041 | Flow(l/m) | 40 | 26 | - | - |
| MONO-SM042 | Flow(l/m) | 40 | 36 | 34 | 29 |
| MONO-SM061 | Flow(l/m) | 65 | 47 | - | - |
| MONO-SM062 | Flow(l/m) | 65 | 55 | 49 | 42 |
| MONO-SM101 | Flow(l/m) | 96 | 72 | - | - |
| MONO-SM102 | Flow(l/m) | 96 | 86 | 80 | - |
| MONO-SM151 | Flow(l/m) | 120 | 86 | - | - |
Probe kit
We offer a level probe kit that includes 2 conductivity probes and a level control box for dry-run protection.
Note that you would also require 2 lengths of waterproof cable 1-core 1.5mm2 for each probe within borehole (see below).
| Carriage band |
Price | Cart | |
|---|---|---|---|
| Probe Kit | B | £155.00 |
Prices exclude VAT - view cart / checkout
Waterproof cable
We offer waterproof (4-core H07-RNF) cable for use with our submersible pumps and stock all common gauges, the figures below referring to cross-sectional area of the core.
We can advise on sizing of the cable, this being dependent on the pump and the distance from the power source.
For an additional fee, we can join the waterproof cable to the submersible pump prior to dispatch.
| Core size | Cores | Carriage band |
Price / m | Cart | |
|---|---|---|---|---|---|
| CABWP151 | 1.5mm2 | 1 | B | £2.00 | |
| CABWP154 | 1.5mm2 | 4 | B | £3.50 | |
| CABWP254 | 2.5mm2 | 4 | B | £4.20 | |
| CABWP44 | 4.0mm2 | 4 | B | £7.00 | |
| CABWP64 | 6.0mm2 | 4 | B | £9.10 |
Prices exclude VAT - view cart / checkout
