General Purpose Pumps

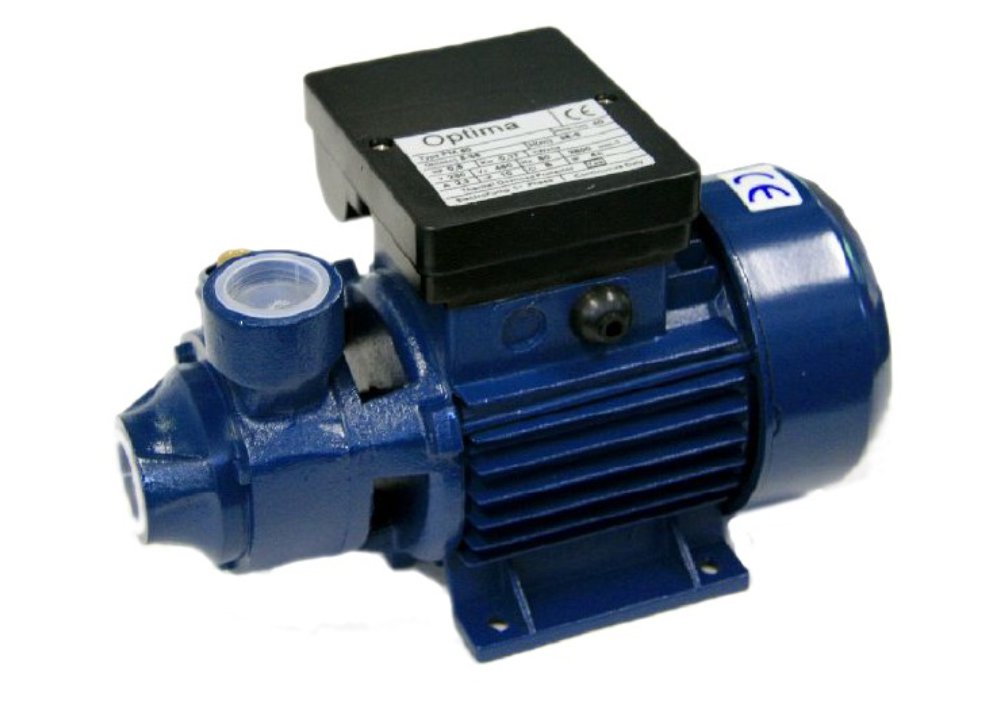

Optima PM peripheral pumps
These low-powered pumps by Optima can develop a high head, and are suitable for clean non-aggressive liquids with no suspended solids.
Used for domestic water systems or small industrial applications.
They are not self priming.
Product specification (PDF)
| Motor | Max. head (m) | Max. flow rate (l/min) | Carriage band |
Price | Cart | |
|---|---|---|---|---|---|---|
| PM60 | 0.37kW | 34 | 35 | B | £108.00 | |
| PM100 | 0.75kW | 65 | 50 | B | £149.40 |
Prices exclude VAT - view cart / checkout
Show or hide full hydraulic data table -
| Flowrate (l/min) |
0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PM60 | Head(m) | 34 | 30 | 25 | 22 | 17 | 14 | 10 | 6 | |||
| PM100 | Head(m) | 65 | 61 | 54 | 49 | 45 | 39 | 36 | 32 | 26 | 21 | 18 |

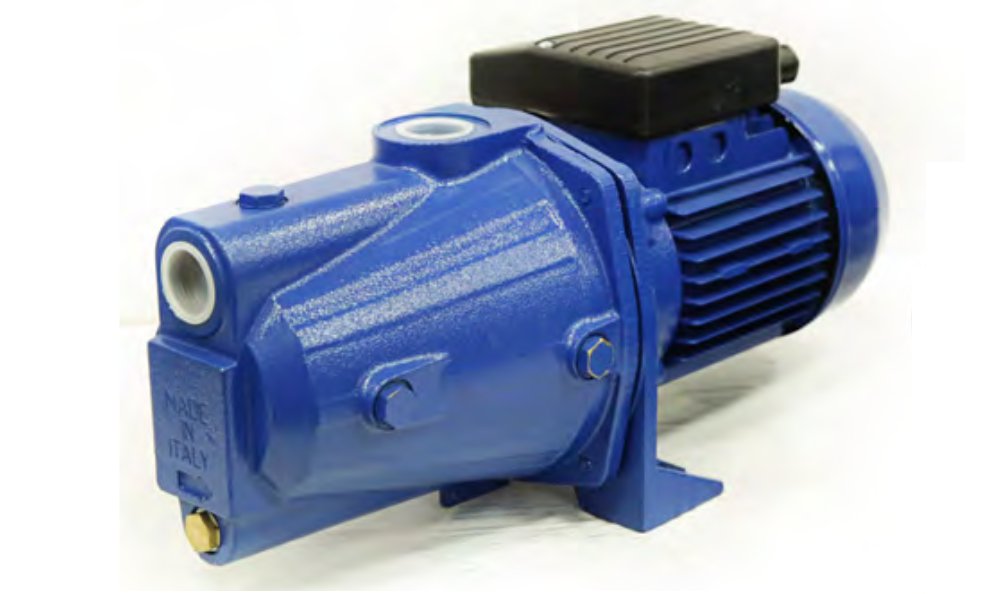

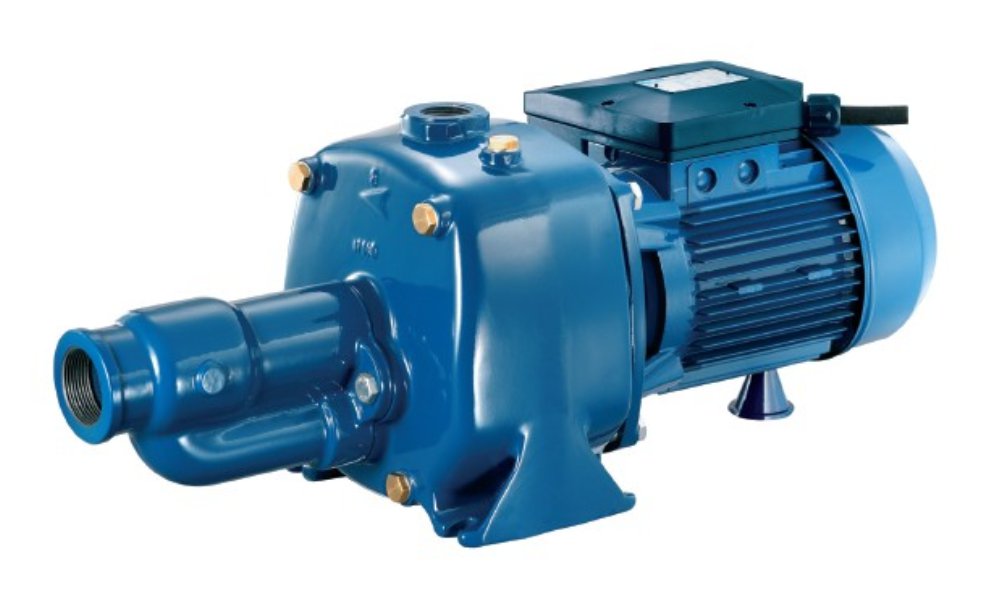

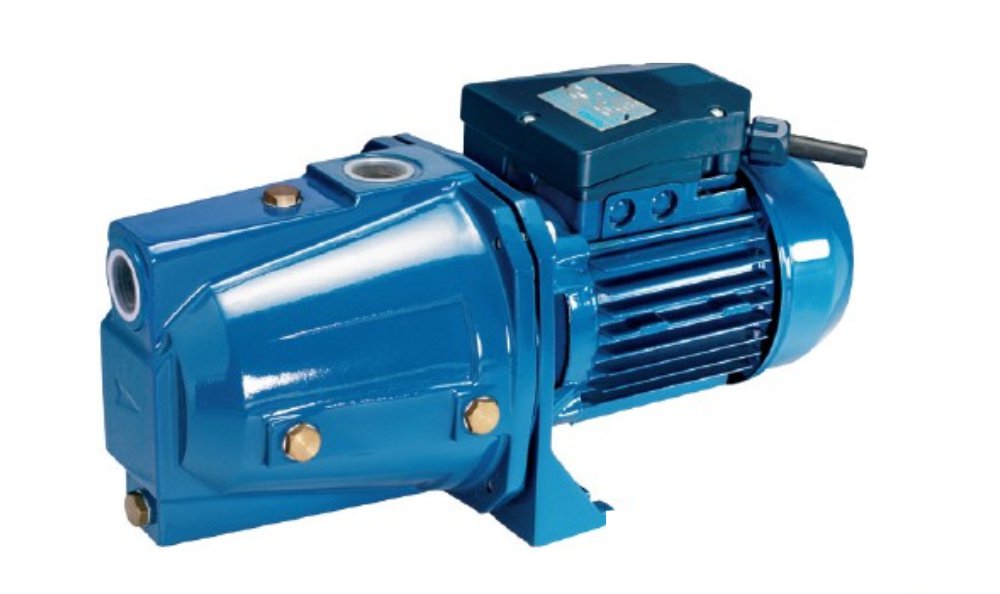

Range of cast iron self-priming jet pumps (Speroni/Pentax)
A range of reliable cast iron pumps for clean water and non-aggressive liquids, suitable for domestic water supply, small irrigation systems, pressurisation, wash-down and water transfer.
Includes the economically priced JM100, the standard JCAM range and the twin impeller JCAB range.
The JCAM and JCAB pumps are manufactured by Pentax in Italy. The JM100 is manufactured by Speroni, also in Italy.
Maximum suction lift 8-9 metres, self-priming and tolerates entrained air in the liquid.
Many pumps are also available in 3-phase 400 V (industrial use or large farms) as well as the usual 1-phase 230 V (for domestic installations).
Product specification (PDF)
| Motor | Max. head (m) | Max. flow rate (l/min) | Carriage band |
1-phase 230 V | 3-phase 400 V | |||
|---|---|---|---|---|---|---|---|---|
| Price | Cart | Price | Cart | |||||
| JCAM50 | 0.44kW | 40 | 50 | B | £270.00 | n/a | --- | |
| JCAM100 | 0.74kW | 52 | 80 | B | £299.00 | n/a | --- | |
| JM100 | 0.75kW | 48 | 60 | B | £239.40 | £155.70 | ||
| JCAM150 | 1.1kW | 51 | 120 | B | £517.00 | n/a | --- | |
| JCAB150 | 1.1kW | 61 | 90 | C | £620.00 | £601.00 | ||
| JCAM200 | 1.5kW | 58 | 120 | B | £524.00 | n/a | --- | |
| JCAB200 | 1.65kW | 63 | 100 | C | £627.00 | £610.00 | ||
| JCAM300 | 2.2kW | 65 | 120 | B | n/a | --- | £524.00 | |
| JCAB300 | 2.2kW | 65 | 140 | C | £638.00 | £613.00 | ||
Prices exclude VAT - view cart / checkout
Show or hide full hydraulic data table -
| Flow rate (l/min) |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JCAM50 | Head(m) | 40 | 35 | 30 | 30 | 24 | 20 | |||||||||
| JCAM100 | Head(m) | 52 | 47 | 42 | 37 | 32 | 25 | 21 | 16 | 13 | ||||||
| JM100 | Head(m) | 48 | 46 | 40 | 35 | 30 | 26 | 10 | ||||||||
| JCAM150 | Head(m) | 51 | 48 | 46 | 44 | 41 | 39 | 37 | 35 | 33 | 30 | 28 | 26 | 25 | ||
| JCAB150 | Head(m) | 61 | 59 | 57 | 54 | 51 | 48 | 44 | 41 | 36 | 32 | |||||
| JCAM200 | Head(m) | 58 | 55 | 53 | 50 | 48 | 46 | 44 | 42 | 40 | 38 | 36 | 34 | 32 | ||
| JCAB200 | Head(m) | 63 | 61 | 60 | 58 | 56 | 54 | 52 | 46 | 43 | 40 | 35 | ||||
| JCAM300 | Head(m) | 65 | 62 | 60 | 57 | 55 | 53 | 51 | 49 | 47 | 45 | 43 | 41 | 40 | ||
| JCAB300 | Head(m) | 65 | 63 | 62 | 60 | 58 | 57 | 55 | 52 | 49 | 46 | 44 | 41 | 38 | 35 | 32 |

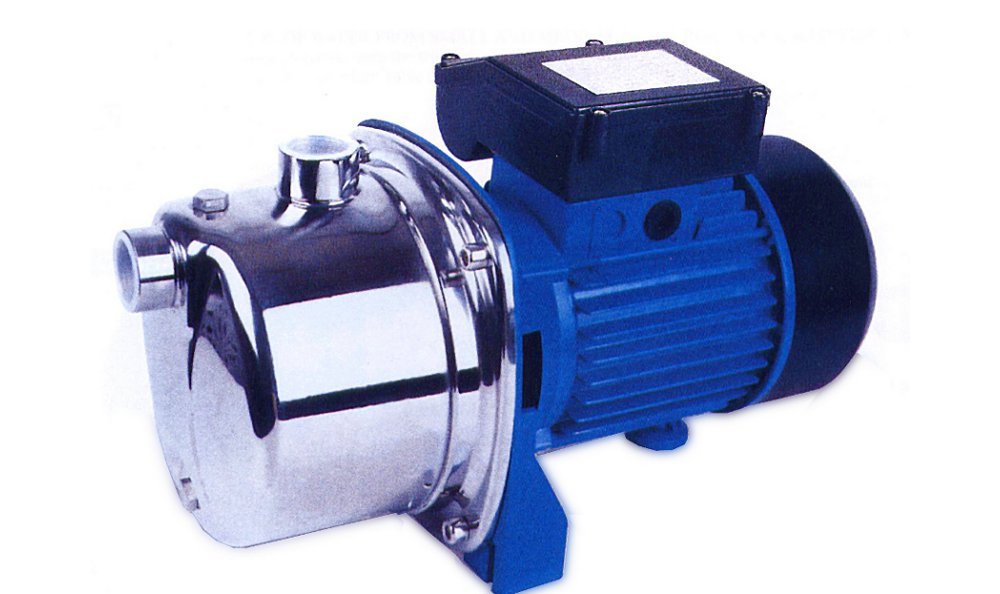

Speroni JX self-priming stainless steel jet pumps
A stainless steel self-priming pump manufactured by Speroni in Italy. Used for pumping of clean water and non-aggressive liquids, suitable for domestic water supply, small irrigation systems, car washing and water transfer.
Maximum suction lift 9 metres, self-priming and tolerates entrained air in the liquid.
Product specification (PDF)
| Motor | Max. head (m) | Max. flow rate (l/min) | Carriage band |
Price | Cart | |
|---|---|---|---|---|---|---|
| JX80 | 0.6kW | 42 | 40 | B | £240.30 |
OUT OF STOCK
|
| JX100 | 0.75kW | 48 | 60 | B | £243.00 |
Prices exclude VAT - view cart / checkout
Show or hide full hydraulic data table -
| Flowrate (l/min) |
0 | 10 | 20 | 30 | 40 | 50 | 60 | |
|---|---|---|---|---|---|---|---|---|
| JX80 | Head(m) | 42 | 39 | 33 | 24 | 15 | ||
| JX100 | Head(m) | 48 | 46 | 40 | 35 | 30 | 22 | 16 |

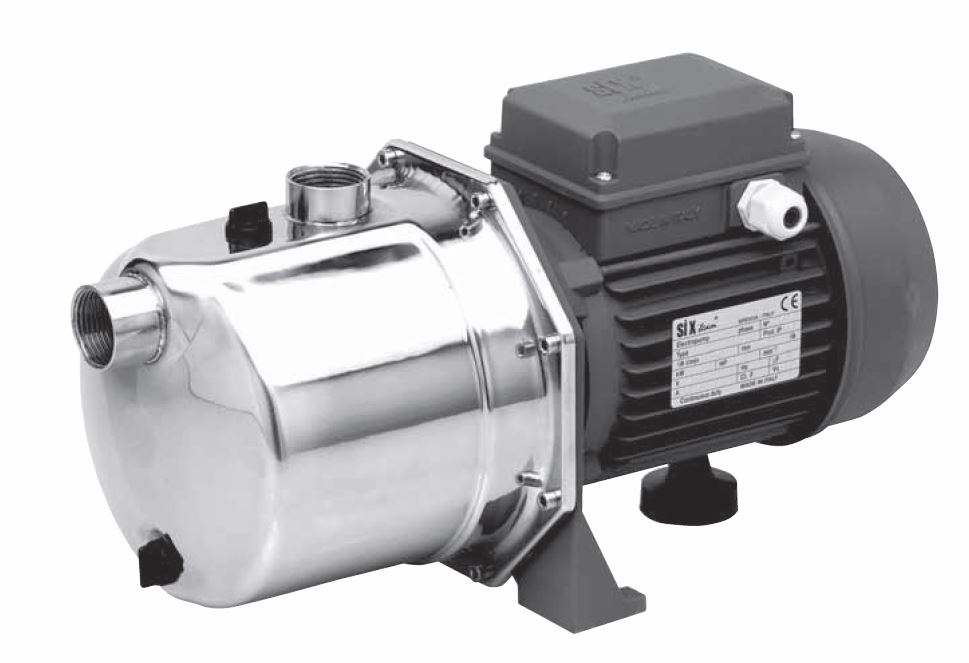

Six Team JX120 self-priming stainless steel jet pump
A stainless steel self-priming pump manufactured by Six Team in Italy. Used for pumping of clean water and non-aggressive liquids, suitable for domestic water supply, small irrigation systems, car washing and water transfer.
Maximum suction lift 9 metres, self-priming and tolerates entrained air in the liquid.
Product specification (PDF)
| Motor | Max. head (m) | Max. flow rate (l/min) | Carriage band |
1-phase 230 V | 3-phase 400 V | |||
|---|---|---|---|---|---|---|---|---|
| Price | Cart | Price | Cart | |||||
| JX120ST | 0.9kW | 61 | 60 | B | £460.00 | £483.00 | ||
Prices exclude VAT - view cart / checkout
Show or hide full hydraulic data table -
| Flowrate (l/min) |
0 | 10 | 20 | 30 | 40 | 50 | 60 | |
|---|---|---|---|---|---|---|---|---|
| JX120ST | Head(m) | 61 | 58 | 51.5 | 45 | 37 | 27 | 15 |
Pentax CM range of centrifugal pumps
The Pentax CM centrifugal pumps are suitable for pumping clean water and fluids not chemically aggressive to pump's components. They are reliable, economical and simple to use. Suitable for water transfer or water supply. These pumps must be installed in a covered area protected from water. For a given power rating, they tend to have lower head and higher flow rates than other pump designs.
Note that they are not self-priming.
Product specification (PDF)
| Motor | Max. head (m) | Max. flow rate (l/min) | Carriage band |
1-phase 230 V | 3-phase 400 V | |||
|---|---|---|---|---|---|---|---|---|
| Price | Cart | Price | Cart | |||||
| CM50M | 0.37kW | 21.5 | 90 | B | £244.00 | £244.00 | ||
| CM100M | 0.74kW | 33 | 90 | B | £324.00 | £309.00 | ||
| CM160M | 1.1kW | 40.5 | 110 | B | £465.00 | n/a | --- | |
| CM210M | 1.65kW | 45.1 | 120 | B | £451.00 | n/a | --- | |
Prices exclude VAT - view cart / checkout
Show or hide full hydraulic data table -
| Flowrate (l/min) |
0 | 20 | 40 | 60 | 80 | 90 | 110 | 120 | |
|---|---|---|---|---|---|---|---|---|---|
| CM50 | Head(m) | 21.5 | 20.5 | 19 | 17 | 15 | 12 | ||
| CM100 | Head(m) | 33 | 32.5 | 31.5 | 29.5 | 27 | 25 | ||
| CM160 | Head(m) | 40.5 | 39.3 | 38.6 | 37.5 | 35.6 | 34.6 | 29.5 | |
| CM210 | Head(m) | 45.1 | 44.1 | 43.3 | 42.3 | 40.5 | 39.2 | 36.4 | 33.5 |
