Multi-Stage Pumps

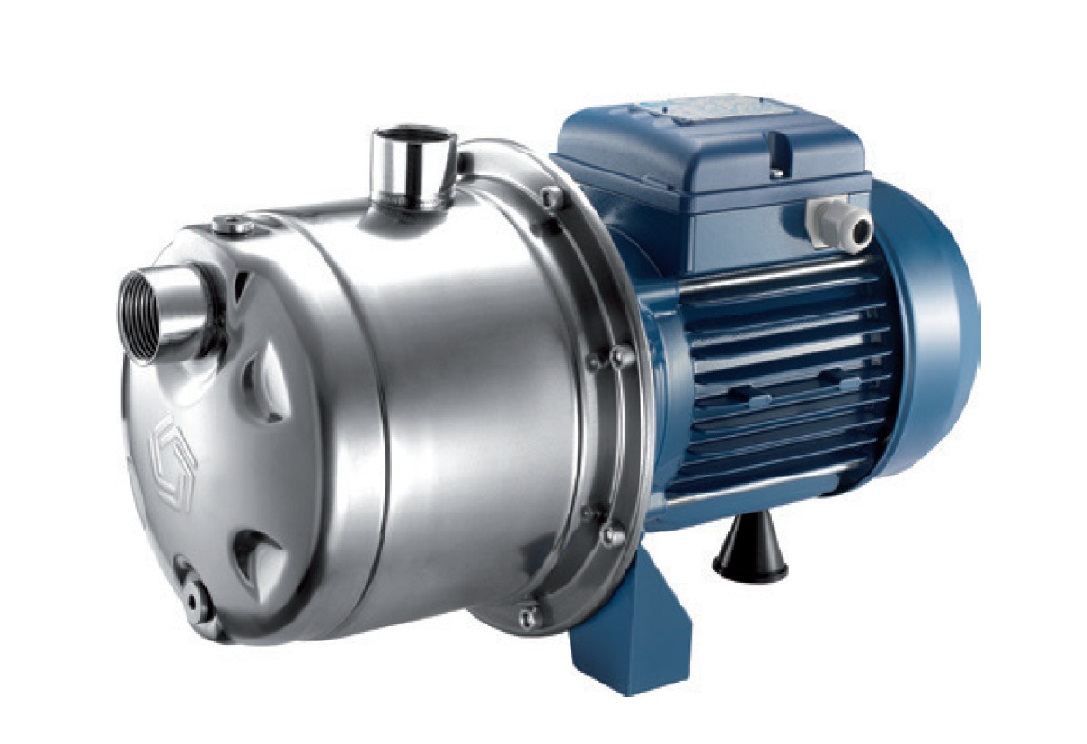

Pentax MPX self-priming multi-stage pumps

A quiet running multi-stage pump, manufactured by Pentax in Italy, with a built-in self-priming valve and able to tolerate air in the water.

It is suitable for clean water and non-aggressive liquids and can be used for water supply, small irrigation systems, pressurisation and water transfer.

These pumps are available in both single phase 230 V and also 3-phase 400 V.

Product specification (PDF) pdf

	Motor	Max. head (m)	Max. flow rate (l/min)	Carriage band	1-phase 230 V		3-phase 400 V
	Motor	Max. head (m)	Max. flow rate (l/min)	Carriage band	Price	Cart	Price	Cart
MPX100	0.74kW	43	80	B	£418.00	£418.00 GBP Add	n/a	---
MPX120	0.88kW	53	80	B	£432.00	£432.00 GBP Add	n/a	---

Prices exclude VAT - view cart / checkout

Show or hide full hydraulic data table -

	Flowrate (l/min)	0	10	20	30	40	50	60	70	80
MPX100	Head(m)	43	41.5	40	37	34	29	25	18	12
MPX120	Head(m)	53	51	48	48	42	37	34	28	21

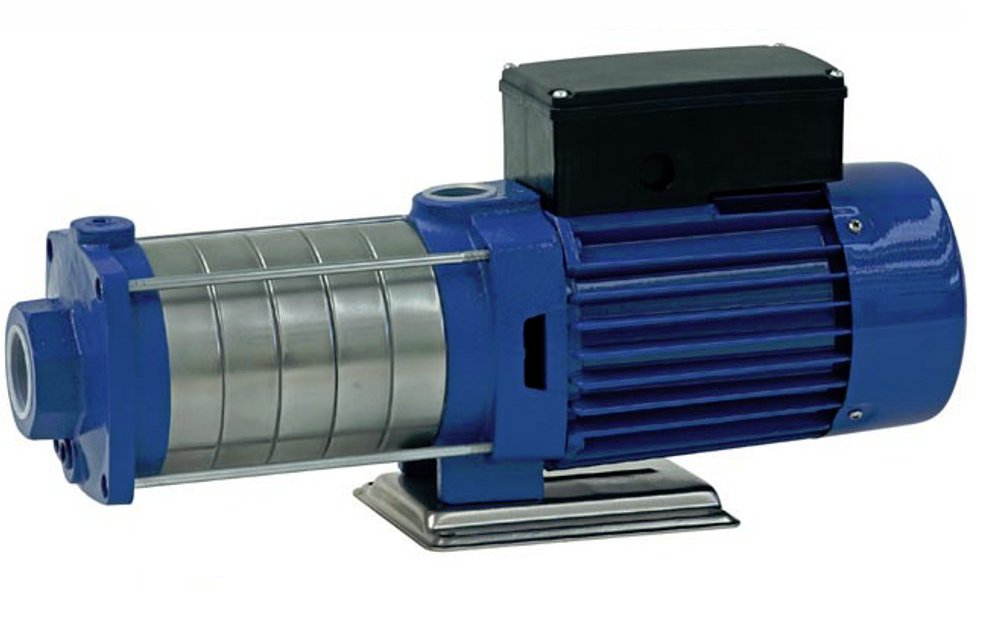

Speroni RX60 horizontal multi-stage pump

Centrifugal horizontal multi-impeller water pumps, manufactured by Speroni in Italy. These pumps able to develop high pressure and a high water lift with a comparatively low power consumption. Thanks to their silent running and very good features, they are suitable in domestic fittings by tank pressure groups, for small sprinkler irrigations and car washing.

These pumps are available in both single phase 230 V and also 3-phase 400 V.

Product specification (PDF) pdf

	Motor	Max. head (m)	Max. flow rate (l/min)	Carriage band	1-phase 230 V		3-phase 400 V
	Motor	Max. head (m)	Max. flow rate (l/min)	Carriage band	Price	Cart	Price	Cart
RX60	1.5kW	59	150	B	£299.70	£299.70 GBP out of stock	£247.50	£247.50 GBP Add

Prices exclude VAT - view cart / checkout

Show or hide full hydraulic data table -

	Flowrate (l/min)	0	15	30	45	60	75	90	105	120	135	150
RX60	Head(m)	59	57	55	52	48	45	40	34	28	22	18

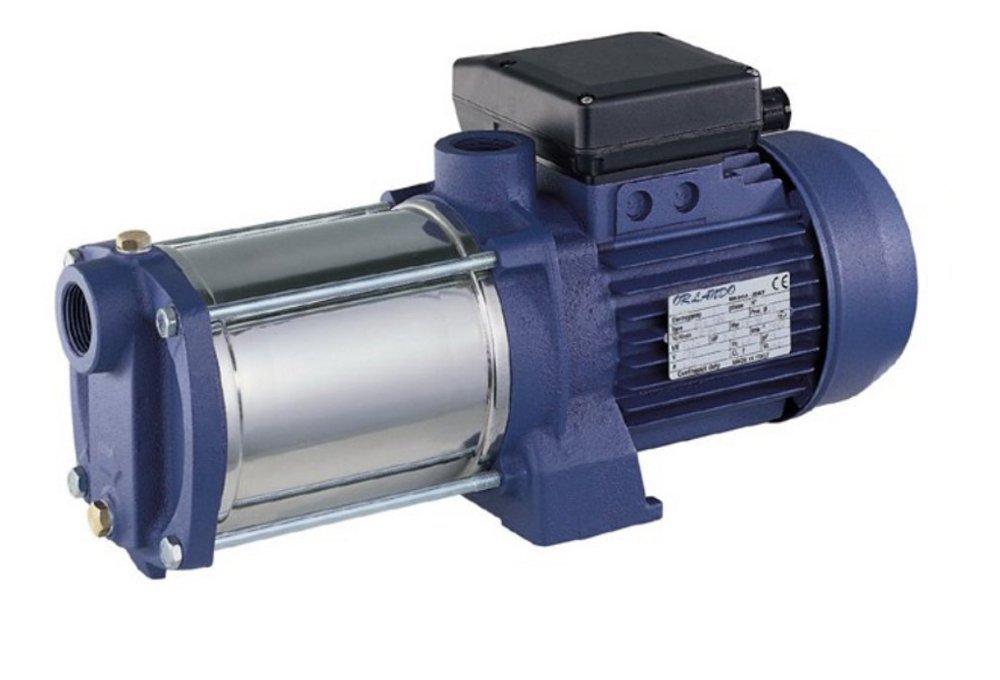

SixTeam STO horizontal multi-stage pumps

A multi-stage pump with high efficiency and low energy consumption, for clean water and non-aggressive liquids.

These pumps are manufactured by SixTeam (Sea-land S.r.l) in Italy.

They are suitable for water supply, irrigation systems, water transfer and wash-down applications.

Available in both single phase 230 V and also 3-phase 400 V.

Product specification (PDF) pdf

	Motor	Max. head (m)	Max. flow rate (l/min)	Carriage band	1-phase 230 V		3-phase 400 V
	Motor	Max. head (m)	Max. flow rate (l/min)	Carriage band	Price	Cart	Price	Cart
STO200	1.5kW	62	160	B	£672.30	£672.30 GBP Add	£660.60	£660.60 GBP Add
STO300	2.2kW	74	160	B	£862.20	£862.20 GBP Add	n/a	---

Prices exclude VAT - view cart / checkout

Show or hide full hydraulic data table -

	Flowrate (l/min)	0	20	40	60	80	100	120	140	160
STO200	Head(m)	62	60	57	53	49	46	35	26	14
STO300	Head(m)	74	71.5	68	63	58.5	55	42	31.5	16

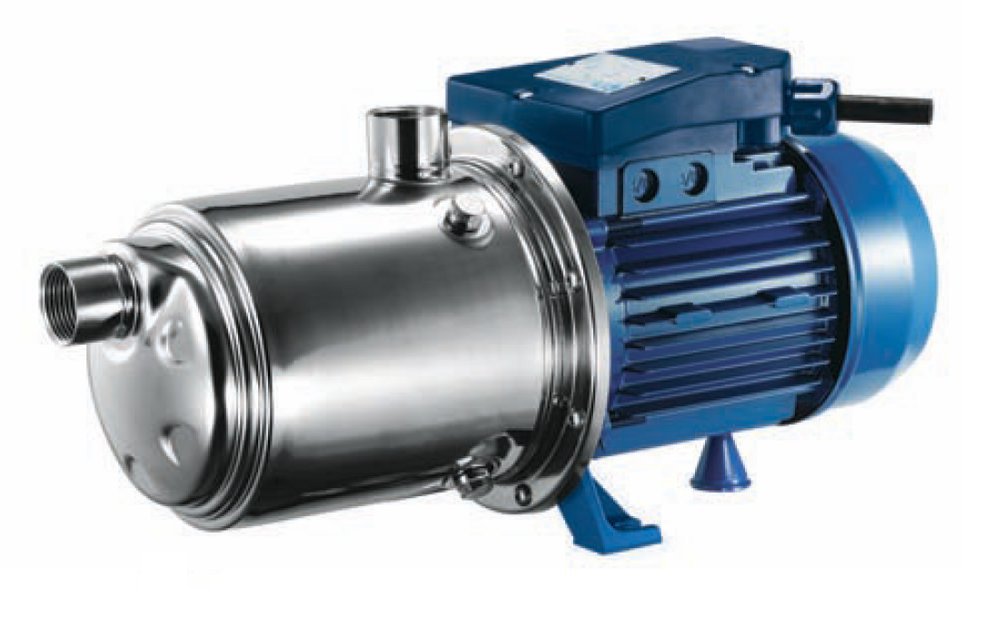

Pentax Ultra horizontal multi-stage pumps

The Ultra range, by Pentax in Italy, are compact, close-coupled, quiet running horizontal multi-stage pumps for pumping clean water.

Construction features a stainless steel body and reinforced noryl impellers and diffusers.

Suitable for industrial, agricultural and domestic applications such as water pressurisation, irrigration and washdown.

These pumps are available in both single phase 230 V and also 3-phase 400 V.

Product specification (PDF) pdf

	Motor	Max. head (m)	Max. flow rate (l/min)	Carriage band	1-phase 230 V		3-phase 400 V
	Motor	Max. head (m)	Max. flow rate (l/min)	Carriage band	Price	Cart	Price	Cart
ULTRA3-4	0.66kW	40.8	80	B	£350.00	£350.00 GBP Add	£350.00	£350.00 GBP Add
ULTRA3-5	0.75kW	52.2	80	B	£395.00	£395.00 GBP Add	£395.00	£395.00 GBP Add
ULTRA3-6	0.9kW	62.8	80	B	£439.00	£439.00 GBP Add	£439.00	£439.00 GBP Add
ULTRA3-7	1.1kW	75.5	80	B	£656.00	£656.00 GBP Add	£641.00	£641.00 GBP Add
ULTRA5-4	0.9kW	45.3	140	B	£399.00	£399.00 GBP Add	£399.00	£399.00 GBP Add
ULTRA5-5	1.1kW	56.8	140	B	£567.00	£567.00 GBP Add	£552.00	£552.00 GBP Add
ULTRA5-6	1.3kW	69.3	140	B	£606.00	£606.00 GBP Add	£582.00	£582.00 GBP Add
ULTRA5-7	1.5kW	80.3	140	B	£680.00	£680.00 GBP Add	£656.00	£656.00 GBP Add
ULTRA7-4	1.3kW	49.5	170	B	n/a	GBP ---	£529.00	£529.00 GBP Add
ULTRA7-5	1.85kW	62.6	170	B	£609.00	£609.00 GBP Add	£577.00	£577.00 GBP Add
ULTRA7-6	2.2kW	74.8	170	B	£891.00	£891.00 GBP Add	£621.00	£621.00 GBP Add
ULTRA9-5	1.85kW	59.2	240	B	£646.00	£646.00 GBP Add	£611.00	£611.00 GBP Add

Prices exclude VAT - view cart / checkout

Show or hide full hydraulic data table -

	Flowrate (l/min)	0	10	20	30	40	60	80
ULTRA3-4	Head(m)	40.8	38.3	35.1	31.8	27.9	19.8	10.4
ULTRA3-5	Head(m)	52.2	48.9	45.1	40.8	36	25.6	14.0
ULTRA3-6	Head(m)	62.8	58.7	54.5	49.6	43.9	32.1	18.3
ULTRA3-7	Head(m)	75.5	71.3	66.6	61.2	54.8	41.1	24.9

	Flowrate (l/min)	0	30	40	60	80	100	120	140
ULTRA5-4	Head(m)	45.3	41.3	39.6	35.6	30.8	24.9	17.6	6.4
ULTRA5-5	Head(m)	56.8	53	51	46.1	40.1	33.3	24.8	11.5
ULTRA5-6	Head(m)	69.3	64.4	62.0	55.6	48.2	39.6	28.8	12.0
ULTRA5-7	Head(m)	80.3	73.6	71	64.5	56.1	46	33.4	12.5

	Flowrate (l/min)	0	40	60	80	100	120	140	160	170
ULTRA7-4	Head(m)	49.5	47.4	45.3	42.5	39.2	34.8	29.4	22.6	16.9
ULTRA7-5	Head(m)	62.6	60.6	58.2	55.1	51.1	45.8	39	29.8	21.5
ULTRA7-6	Head(m)	74.8	71.5	68.3	64.5	59.3	53	44.6	34.5	26.7

	Flowrate (l/min)	0	60	100	120	140	160	180	200	220	240
ULTRA9-5	Head(m)	59.2	54.4	50.4	47.9	44.8	40.5	35.5	27.8	23.5	16.3

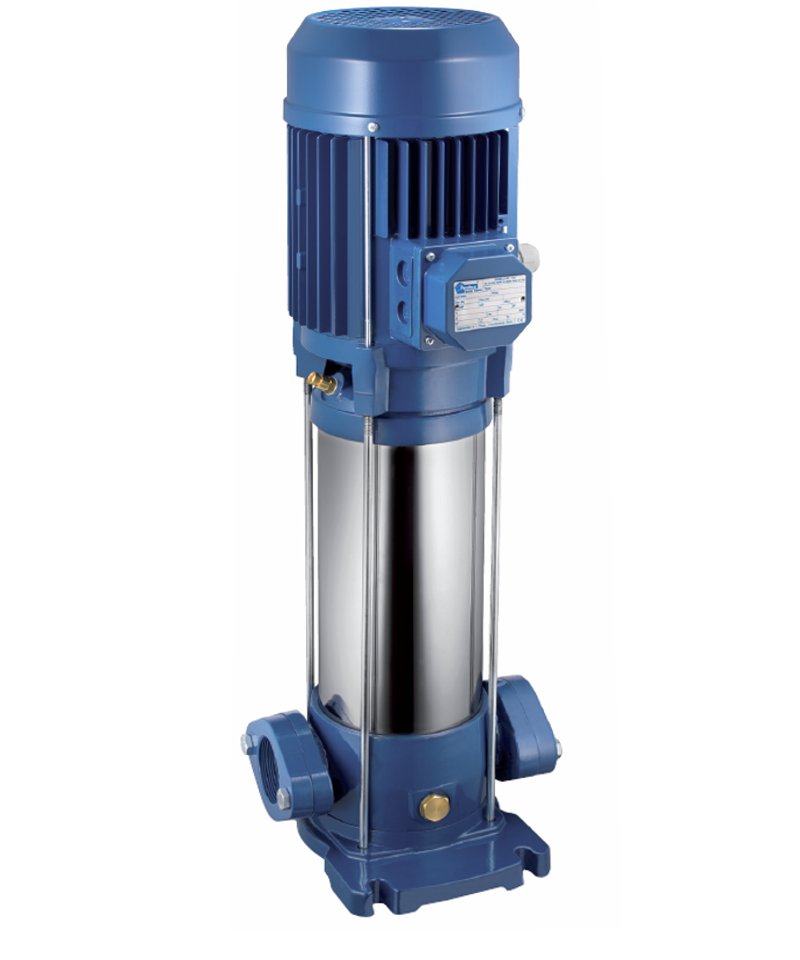

Pentax Ultra V-L vertical multi-stage pumps

A range of economical compact close-coupled vertical multistage pumps with oval flanges, for pumping clean water.

Manufactured by Pentax in Italy.

Construction - Cast iron top and bottom castings, stainless steel sleeve and reinforced noryl impellers and diffusers.

Suitable for industrial, agricultural and domestic applications such as water pressurisation, irrigration and washdown.

These pumps are available in both single phase 230 V and also 3-phase 400 V.

Product specification (PDF) top

	Motor	Max. head (m)	Max. flow rate (l/min)	Carriage band	1-phase 230 V		3-phase 400 V
	Motor	Max. head (m)	Max. flow rate (l/min)	Carriage band	Price	Cart	Price	Cart
ULTRA3-9V	1.5kW	95.8	80	B	£944.00	£944.00 GBP Add	£927.00	£927.00 GBP Add
ULTRA3-10V	1.8kW	108.4	80	B	£976.00	£976.00 GBP Add	£961.00	£961.00 GBP Add
ULTRA3-12V	2.2kW	128.9	80	B	£1143.00	£1143.00 GBP Add	£1021.00	£1021.00 GBP Add
ULTRA5-8V	1.85kW	91.4	140	B	£850.00	£850.00 GBP Add	£821.00	£821.00 GBP Add
ULTRA5-9V	2.1kW	102.1	140	B	£992.00	£992.00 GBP Add	£844.00	£844.00 GBP Add
ULTRA5-10V	2.2kW	112.7	140	B	£1109.00	£1109.00 GBP Add	£875.00	£875.00 GBP Add
ULTRA5-11V	2.57kW	122	140	C	£1162.00	£1162.00 GBP Add	£1046.00	£1046.00 GBP Add
ULTRA7-5V	1.85kW	62.6	170	B	£745.00	£745.00 GBP Add	£715.00	£715.00 GBP Add
ULTRA7-6V	2.2kW	74.8	170	B	£995.00	£995.00 GBP Add	£752.00	£752.00 GBP Add
ULTRA9-6V	2.2kW	69.4	260	C	£1204.00	£1204.00 GBP Add	£968.00	£968.00 GBP OUT OF STOCK
ULTRA9-7V	3.0kW	82	260	C	n/a	---	£1217.00	£1217.00 GBP OUT OF STOCK

Prices exclude VAT - view cart / checkout

Show or hide full hydraulic data table -

	Flowrate (l/min)	0	10	20	30	40	60	80
ULTRA3-9V	Head(m)	95.8	92.2	86.3	78.9	70.7	52.7	30.8
ULTRA3-10V	Head(m)	108.4	102.9	96.5	88.2	79.7	58.3	34.1
ULTRA3-12V	Head(m)	128.9	121.5	113	103.5	92.2	67.9	40.5

	Flowrate (l/min)	0	30	40	60	80	100	120	140
ULTRA5-8V	Head(m)	91.4	85	81.8	74.3	65.5	54.7	40.4	19.1
ULTRA5-9V	Head(m)	102.1	94.6	90.7	81.6	71.0	58.5	42.3	20.1
ULTRA5-10V	Head(m)	112.7	103.9	99.9	89.9	78.2	64	46.4	21
ULTRA5-11V	Head(m)	122	111.2	106.3	95.6	83.1	67.6	48.2	22

	Flowrate (l/min)	0	40	60	80	100	120	140	160	170
ULTRA7-5V	Head(m)	62.6	60.6	58.2	55.1	51.1	45.8	39	29.8	21.5
ULTRA7-6V	Head(m)	74.8	71.5	68.3	64.5	59.3	53	44.6	34.5	26.7

	Flowrate (l/min)	0	60	100	120	140	160	180	200	220	240	260
ULTRA9-6V	Head(m)	69.4	63.7	58.8	55.6	51.6	46.5	40.3	33.5	25.4	17.0	9.0
ULTRA9-7V	Head(m)	82	76	70.9	67.5	63	57	49.7	41	31.2	20.1	9.5

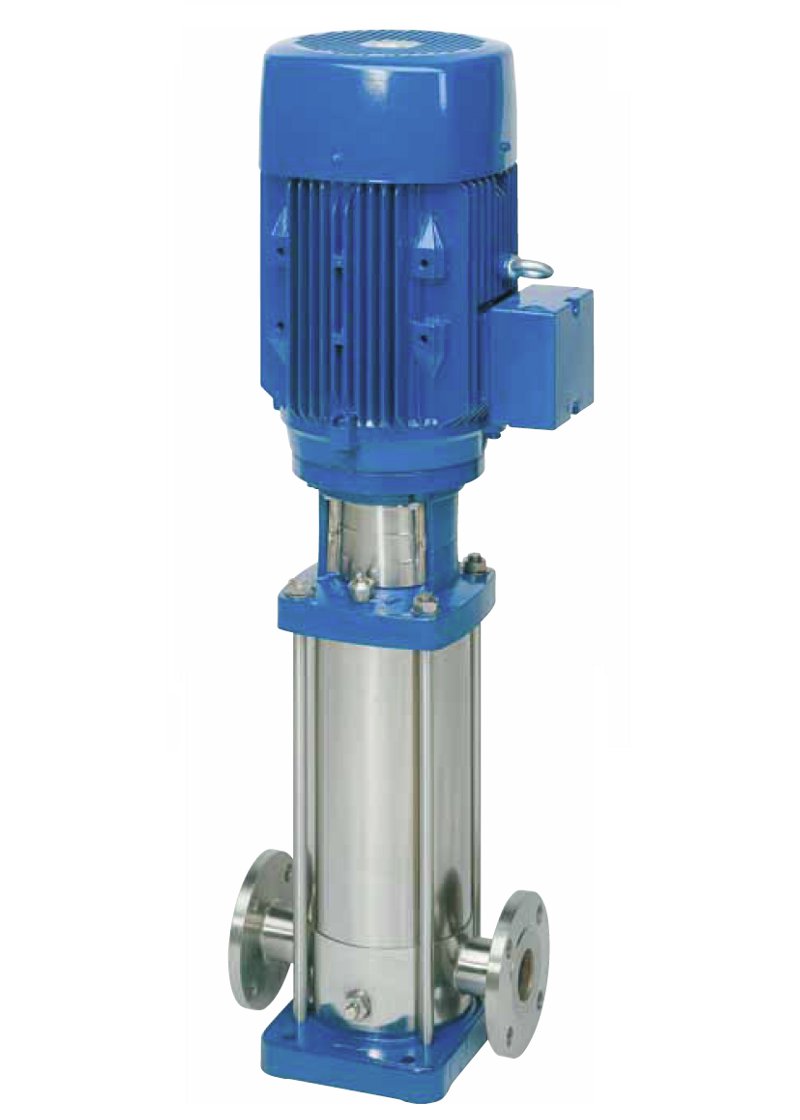

Speroni VS vertical multi-stage pumps

A range of stainless steel vertical multi-stage pumps, manufactured by Speroni in Italy, fitted with single phase motors or 3-phase motors.

Suitable for:

Water supply
Pressure boosting
Wash-down
Irrigation
Boiler feedwater

Product specification (PDF) pdf

	Motor	Max. head (m)	Max. flow rate (l/min)	Carriage band	1-phase 230 V		3-phase 400 V
	Motor	Max. head (m)	Max. flow rate (l/min)	Carriage band	Price	Cart	Price	Cart
VS2-7	0.75kW	69	60	C	£1207.00	£1207.00 GBP Add	£1220.00	£1220.00 GBP Add
VS2-11	1.1kW	105	60	C	£1425.00	£1425.00 GBP Add	£1410.00	£1410.00 GBP Add
VS2-15	1.5kW	143	60	C	£1703.00	£1703.00 GBP Add	£1568.00	£1568.00 GBP Add
VS2-22	2.2kW	212	60	C	£1931.00	£1931.00 GBP Add	£1833.00	£1833.00 GBP Add
VS4-6	1.1kW	58	133	C	£1340.00	£1340.00 GBP Add	£1316.00	£1316.00 GBP Add
VS4-8	1.5kW	76	133	C	£1592.00	£1592.00 GBP Add	£1430.00	£1430.00 GBP Add
VS4-12	2.2kW	116	133	C	£1743.00	£1743.00 GBP Add	£1684.00	£1684.00 GBP Add
VS8-6	2.2kW	64	200	C	£1904.00	£1904.00 GBP Add	£1833.00	£1833.00 GBP Add
VS8-8	3kW	85	200	C	n/a	---	£2196.00	£2196.00 GBP Add
VS8-10	4kW	106	200	C	n/a	---	£2681.00	£2681.00 GBP Add
VS16-4	4kW	56	366	C	n/a	---	£2378.00	£2378.00 GBP Add
VS16-6	5.5kW	84	366	C	n/a	---	£2979.00	£2979.00 GBP Add
VS16-8	7.5kW	112	366	C	n/a	---	£3333.00	£3333.00 GBP Add

Prices exclude VAT - view cart / checkout

Show or hide full hydraulic data table -

	Flowrate (l/min)	0	16	20	26	33	40	46	53	58
VS2-7	Head(m)	69	63	60	57	52	47	42	35	28
VS2-11	Head(m)	105	98	95	89	80	73	64	53	44
VS2-15	Head(m)	143	134	130	124	114	104	94	78	60
VS2-22	Head(m)	212	197	191	180	165	150	135	110	90

	Flowrate (l/min)	0	25	33	50	66	83	100	116	133
VS4-6	Head(m)	58	56	54	52	48	41	37	28	20
VS4-8	Head(m)	76	74	72	70	64	55	50	38	27
VS4-12	Head(m)	116	114	108	104	95	85	75	58	41

	Flowrate (l/min)	0	83	100	116	133	150	166	183	200
VS8-6	Head(m)	64	62	58	56	53	49	46	41	39
VS8-8	Head(m)	85	83	79	76	73	68	64	57	52
VS8-10	Head(m)	106	104	100	97	93	87	81	73	65

	Flowrate (l/min)	0	133	150	166	183	200	233	266	300	333	366
VS16-4	Head(m)	56	54	53	52	51	50	49	46	43	38	34
VS16-6	Head(m)	84	82	81	80	78	77	73	69	63	57	52
VS16-8	Head(m)	112	110	109.5	109	108.5	108	104	101	95	85	70
