General Purpose Pumps

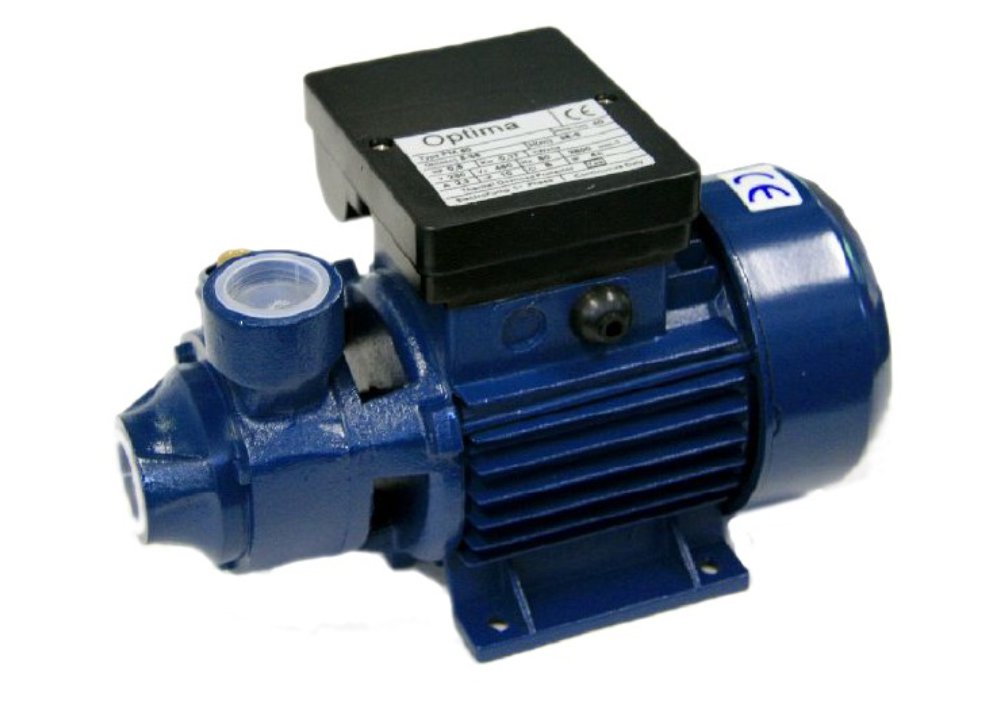

Optima PM peripheral pumps

These low-powered pumps by Optima can develop a high head, and are suitable for clean non-aggressive liquids with no suspended solids.

Used for domestic water systems or small industrial applications.

Product specification (PDF)pdf
pm60
Motor Max. head (m) Max. flow rate (l/min) Carriage
band
Price Cart
PM60 0.37kW 34 35 B £77.40
Add
PM100 0.75kW 65 50 B £132.30
Add

Prices exclude VAT - view cart / checkout

Show or hide full hydraulic data table -

Flowrate
(l/min)
0 5 10 15 20 25 30 35 40 45 50
PM60 Head(m) 34 30 25 22 17 14 10 6
PM100 Head(m) 65 61 54 49 45 39 36 32 26 21 18
top

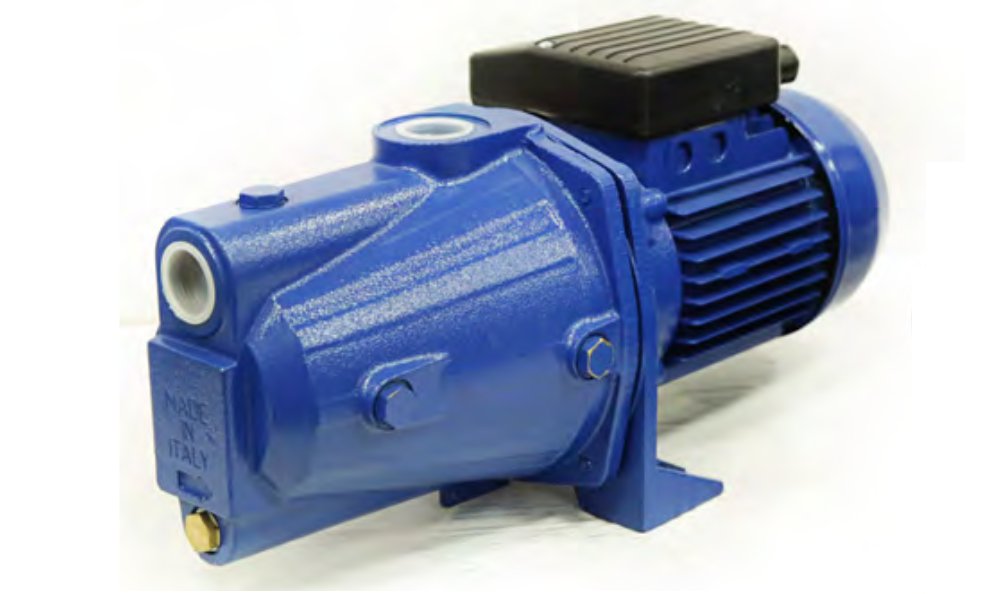

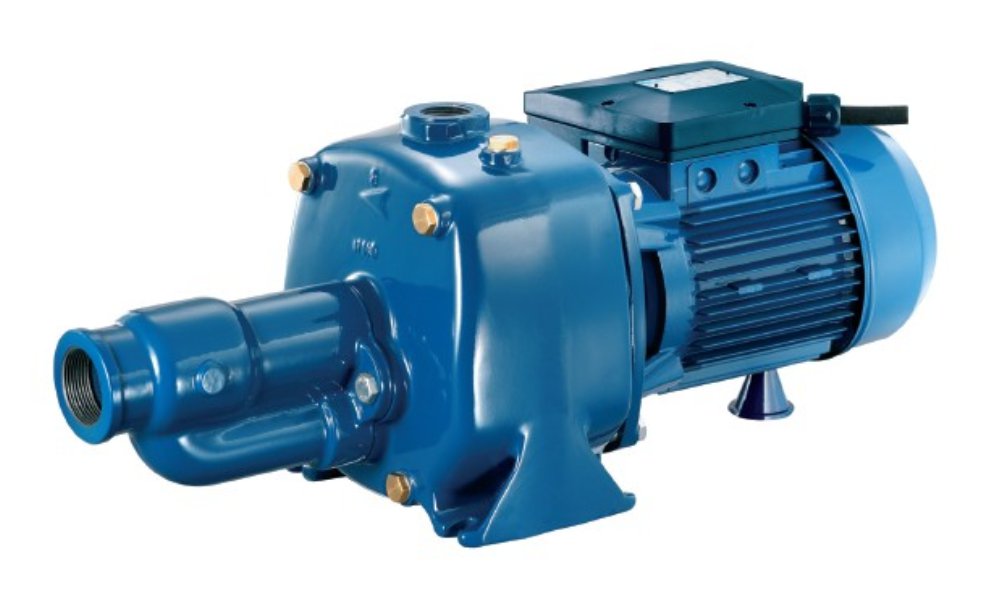

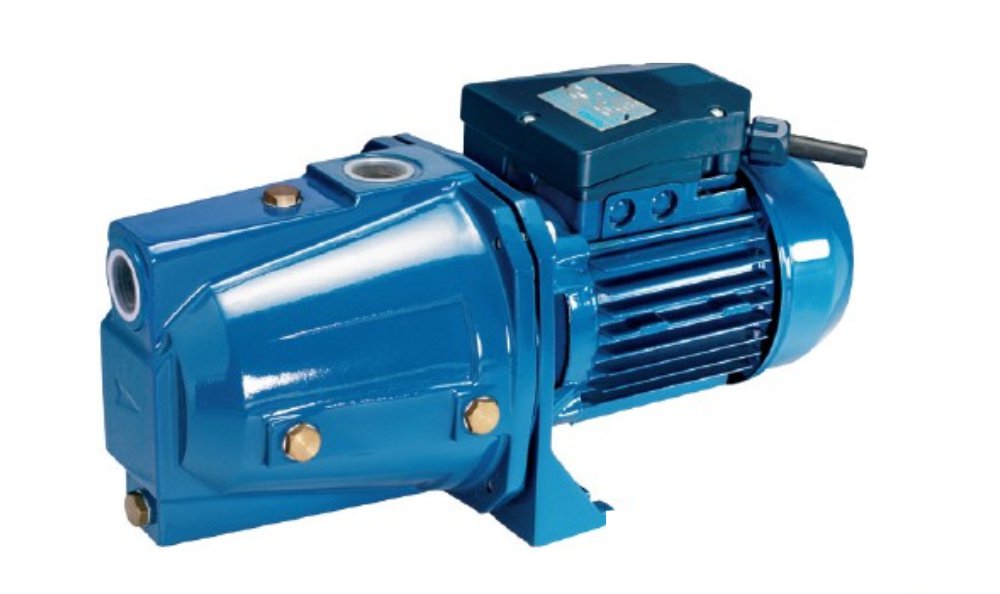

Range of cast iron self-priming jet pumps (Speroni/Pentax)

A range of reliable cast iron pumps for clean water and non-aggressive liquids, suitable for domestic water supply, small irrigation systems, pressurisation, wash-down and water transfer.

Includes the economically priced JM100, the standard JCAM range and the twin impeller JCAB range.

The JCAM and JCAB pumps are manufactured by Pentax in Italy. The JM100 is manufactured by Speroni, also in Italy.

Maximum suction lift 8-9 metres, self-priming and tolerates entrained air in the liquid.

Many pumps are also available in 3-phase 400 V (industrial use or large farms) as well as the usual 1-phase 230 V (for domestic installations).

Product specification (PDF)pdf
Motor Max. head (m) Max. flow rate (l/min) Carriage
band
1-phase 230 V 3-phase 400 V
Price Cart Price Cart
JCAM50 0.44kW 40 50 B £176.40
Add
n/a ---
JCAM100 0.74kW 52 80 B £180.00
Add
n/a ---
JM100 0.75kW 48 60 B £148.50
Add
£148.50
Add
JCAM150 1.1kW 51 120 B £325.80
Add
n/a ---
JCAB150 1.1kW 61 90 B £378.00
Add
£392.40
Add
JCAM200 1.5kW 58 120 B £330.30
Add
n/a ---
JCAB200 1.65kW 63 100 B £396.00
Add
£396.00
Add
JCAM300 2.2kW 65 120 B n/a --- £329.40
Add
JCAB300 2.2kW 65 140 B £402.30
Add
£387.00
Add

Prices exclude VAT - view cart / checkout

Show or hide full hydraulic data table -

Flow rate
(l/min)
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
JCAM50 Head(m) 40 35 30 30 24 20
JCAM100 Head(m) 52 47 42 37 32 25 21 16 13
JM100 Head(m) 48 46 40 35 30 26 10
JCAM150 Head(m) 51 48 46 44 41 39 37 35 33 30 28 26 25
JCAB150 Head(m) 61 59 57 54 51 48 44 41 36 32
JCAM200 Head(m) 58 55 53 50 48 46 44 42 40 38 36 34 32
JCAB200 Head(m) 63 61 60 58 56 54 52 46 43 40 35
JCAM300 Head(m) 65 62 60 57 55 53 51 49 47 45 43 41 40
JCAB300 Head(m) 65 63 62 60 58 57 55 52 49 46 44 41 38 35 32
top

DAB JET 251 self-priming jet pump

DAB Jet 251M self- priming cast iron pump to transfer water from a well, provide a pressurised supply with the addition of a suitable control system..

Ideal for agricultural uses or small industrial applications.

Product specification (PDF)pdf
dab-jet251
Motor Max. head (m) Max. flow rate (l/min) Carriage
band
1-phase 230 V 3-phase 400 V
Price Cart Price Cart
DABJ251M 2.2kW 62 120 B £269.80
out of stock
n/a ---

Prices exclude VAT - view cart / checkout

Show or hide full hydraulic data table -

Flowrate
(l/min)
0 10 20 30 40 50 60 70 80 90 100 120
DABJ251M Head(m) 62 60 58 56 54 51 48.5 46 43.5 42 39 34.2
top

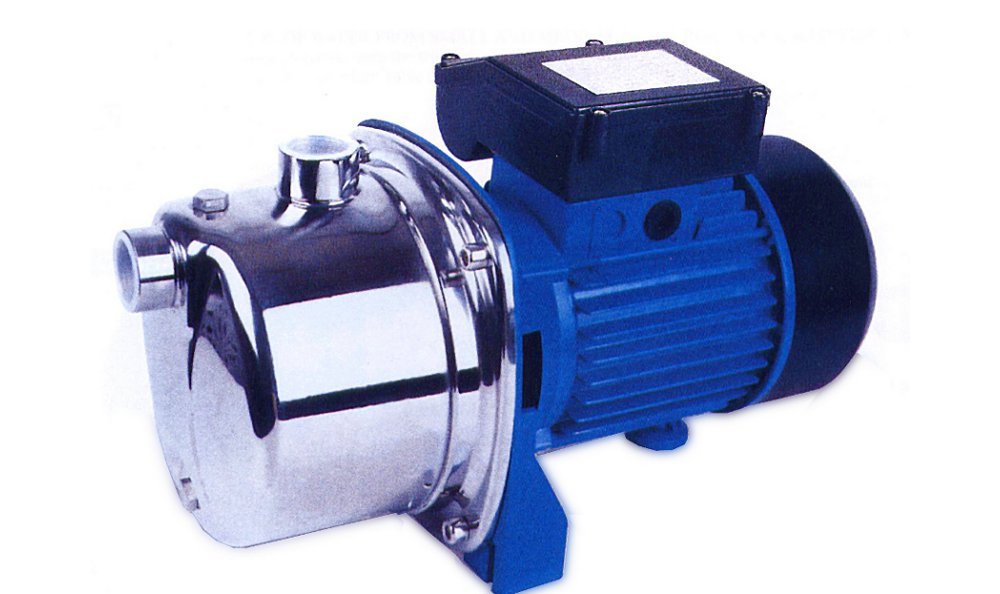

Speroni JX self-priming stainless steel jet pumps

A stainless steel self-priming pump manufactured by Speroni in Italy. Used for pumping of clean water and non-aggressive liquids, suitable for domestic water supply, small irrigation systems, car washing and water transfer.

Maximum suction lift 9 metres, self-priming and tolerates entrained air in the liquid.

Product specification (PDF)pdf
jx100
Motor Max. head (m) Max. flow rate (l/min) Carriage
band
Price Cart
JX80 0.6kW 42 40 B £117.00
Add
JX100 0.75kW 48 60 B £155.70
Add

Prices exclude VAT - view cart / checkout

Show or hide full hydraulic data table -

Flowrate
(l/min)
0 10 20 30 40 50 60
JX80 Head(m) 42 39 33 24 15
JX100 Head(m) 48 46 40 35 30 22 16
top

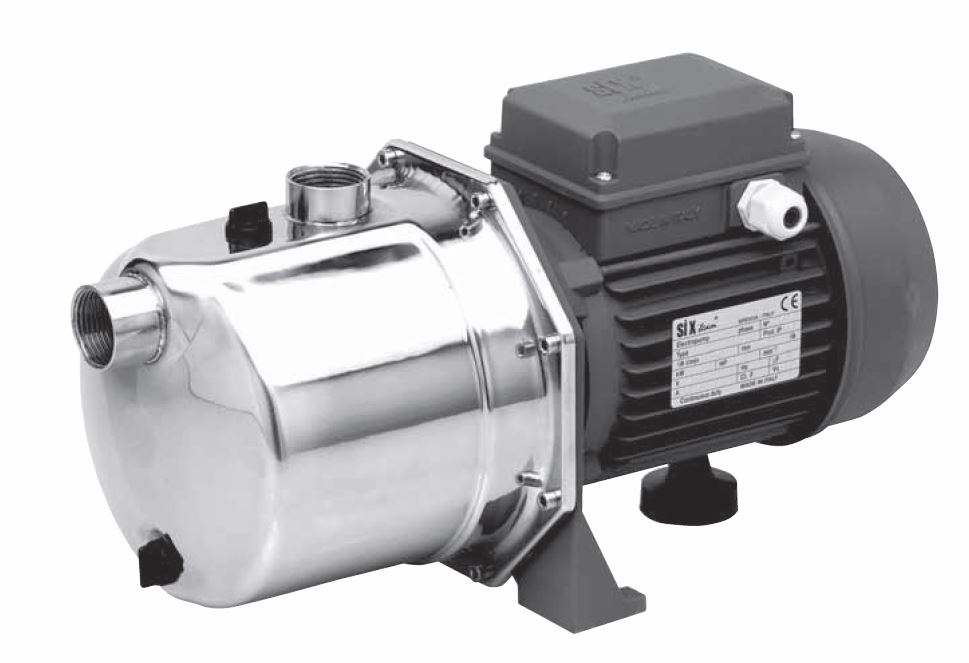

Six Team JX120 self-priming stainless steel jet pump

A stainless steel self-priming pump manufactured by Six Team in Italy. Used for pumping of clean water and non-aggressive liquids, suitable for domestic water supply, small irrigation systems, car washing and water transfer.

Maximum suction lift 9 metres, self-priming and tolerates entrained air in the liquid.

Product specification (PDF)pdf
jx120
Motor Max. head (m) Max. flow rate (l/min) Carriage
band
1-phase 230 V 3-phase 400 V
Price Cart Price Cart
JX120ST 0.9kW 61 60 B £300.00
Add
£290.00
Add

Prices exclude VAT - view cart / checkout

Show or hide full hydraulic data table -

Flowrate
(l/min)
0 10 20 30 40 50 60
JX80 Head(m) 61 58 51.5 45 37 27 15
