Tank Sets

A range of pressurisation units incorporating a storage tank with a booster set fitted.

Includes tank fitting with ball-float valve, screened vent/overflow and drain valve.

As a general guide the normal system operating pressure should not be more than 75% of the pump maximum pressure. For further advice please contact Water-Pump.biz.

Tank sets - external pumps

Control Options:

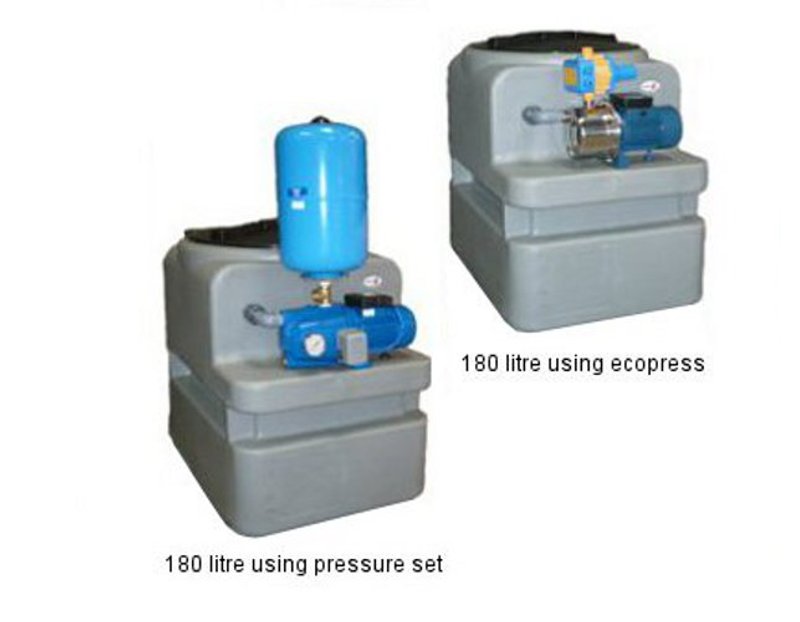

24l pressure set using a Prime Protect type pressure switch to shut down the pump if it runs dry.
OR
Eco-Presscontrol, flow-demand controller.

Standard units, self-priming jet pumps nominal flow rate 40 litres/minute.

Product specification (PDF)pdf
tank-set-pumping-kit
Tank (litres) 180 180
Control Ecopress Pressure set
Pump Motor Bar
max.
JCAM50 0.44kW 4.0 £850.00 £964.00
JM100 0.75kW 4.5 £816.00 £930.00
JX100 0.75kW 4.5 £823.00 £937.00

Prices exclude VAT - view cart / checkout

top

Tank sets - submersible pumps

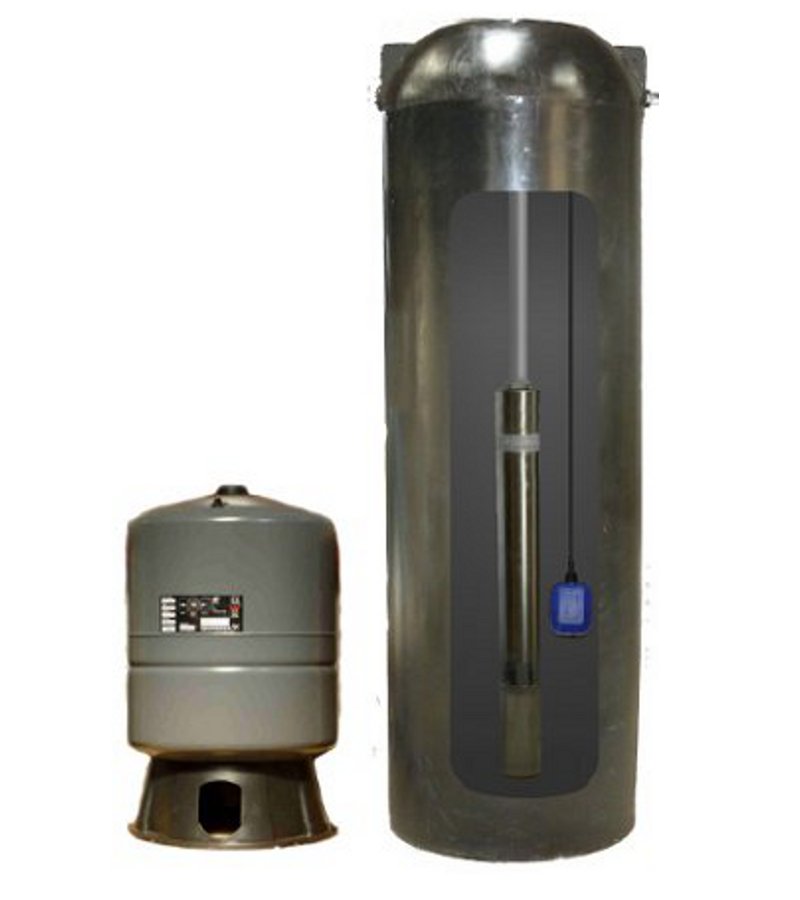

A 4" borehole pump, suspended inside a 700mm diameter polyethylene tank and fitted with a float switch to prevent it running dry.

The standard system is control by a separate 60 litre pressure set with the option of a larger vessel.

Product specification (PDF)pdf
submersible-tankset-pumping-kit
Pump Motor Litres/min
max.
Bar
max.
Tank
500 litres
1435mm height
700 litres
2135mm height
ST05-13 0.37kW 25 8.6 £1469.00 £1478.00
ST10-07 0.37kW 50 4.6 £1436.00 £1445.00
ST10-10 0.55kW 50 6.9 £1514.00 £1523.00
Additional for larger pressure vessel 100 litre £104.00
170 litre £386.00
300 litre £495.00
500 litre £1861.00

Prices exclude VAT - view cart / checkout
